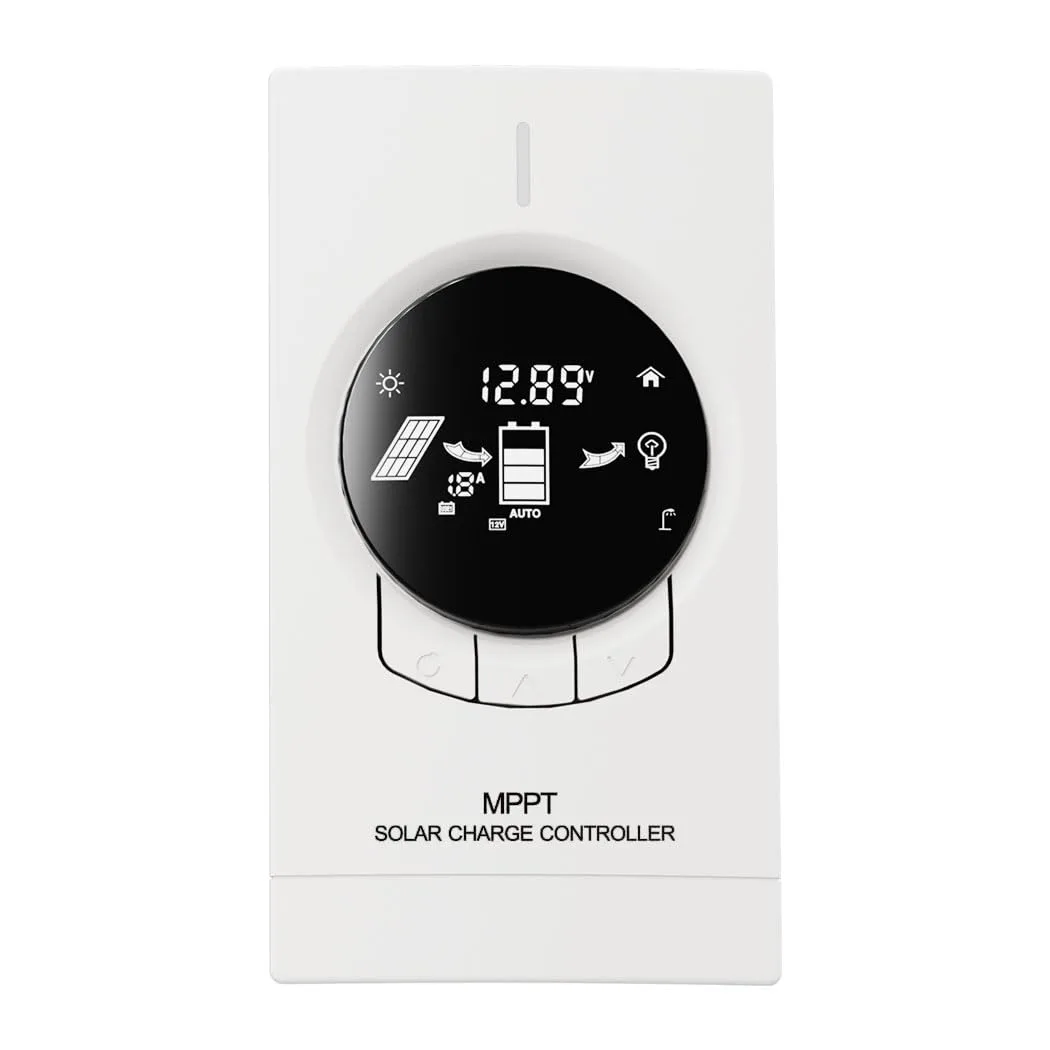

20A MPPT Solar Charge Controller 12V/24V Battery

Description

Harness the power of the sun with our 20A MPPT Solar Charge Controller! This advanced controller maximizes energy production from your solar panels, boasting a 99.6% tracking efficiency and a 97% energy conversion rate thanks to its powerful 32-bit chip. Unlike PWM controllers, MPPT technology provides a significant 10%-30% boost in efficiency. Compatible with a wide range of battery types, including Sealed, GEL, Flooded, and Lithium (even with 0V activation), this controller is a versatile solution for your solar power needs. The backlit screen provides clear and concise system information, displaying charge/discharge logs and allowing for easy manual parameter adjustments. Safety is paramount, with comprehensive protection against under-voltage, over-charge, overload, short-circuit, and reverse connection, ensuring the longevity of your equipment. Whether you’re powering a small off-grid system or supplementing your home’s energy supply, this 20A MPPT solar controller is a reliable and efficient choice. Handles 240W~360W solar power with a maximum input of <80V (at lowest temperature) and <75V (at 25°C). At 12V battery, you can get maximum input of 240W solar power and 480W maximum input, if you have 24V battery.

• Advanced MPPT technology for 99.6% tracking efficiency.
• 32-bit chip for 97% energy conversion.
• 10%-30% higher efficiency than PWM controllers.

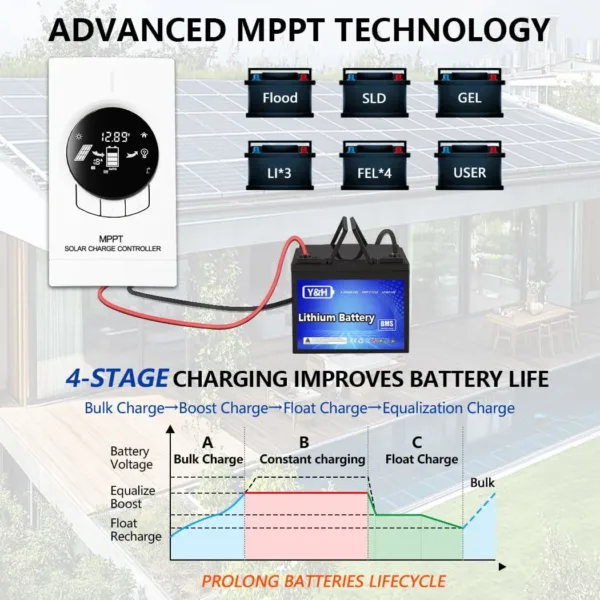

• Compatible with Sealed, GEL, Flooded, and Lithium batteries (including 0V activation).

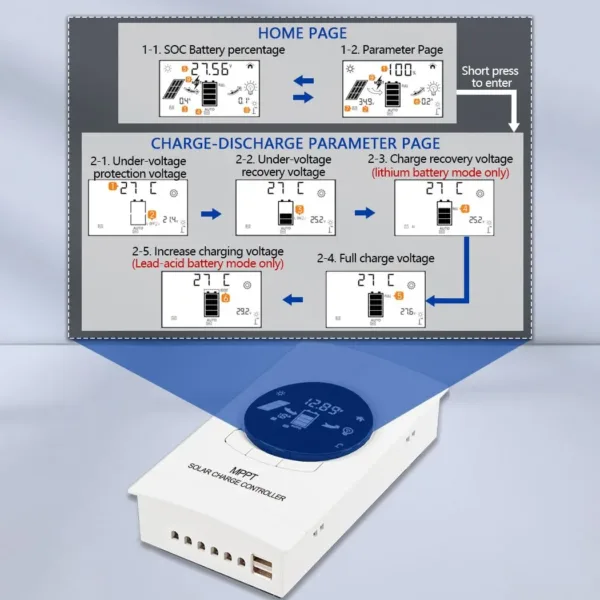

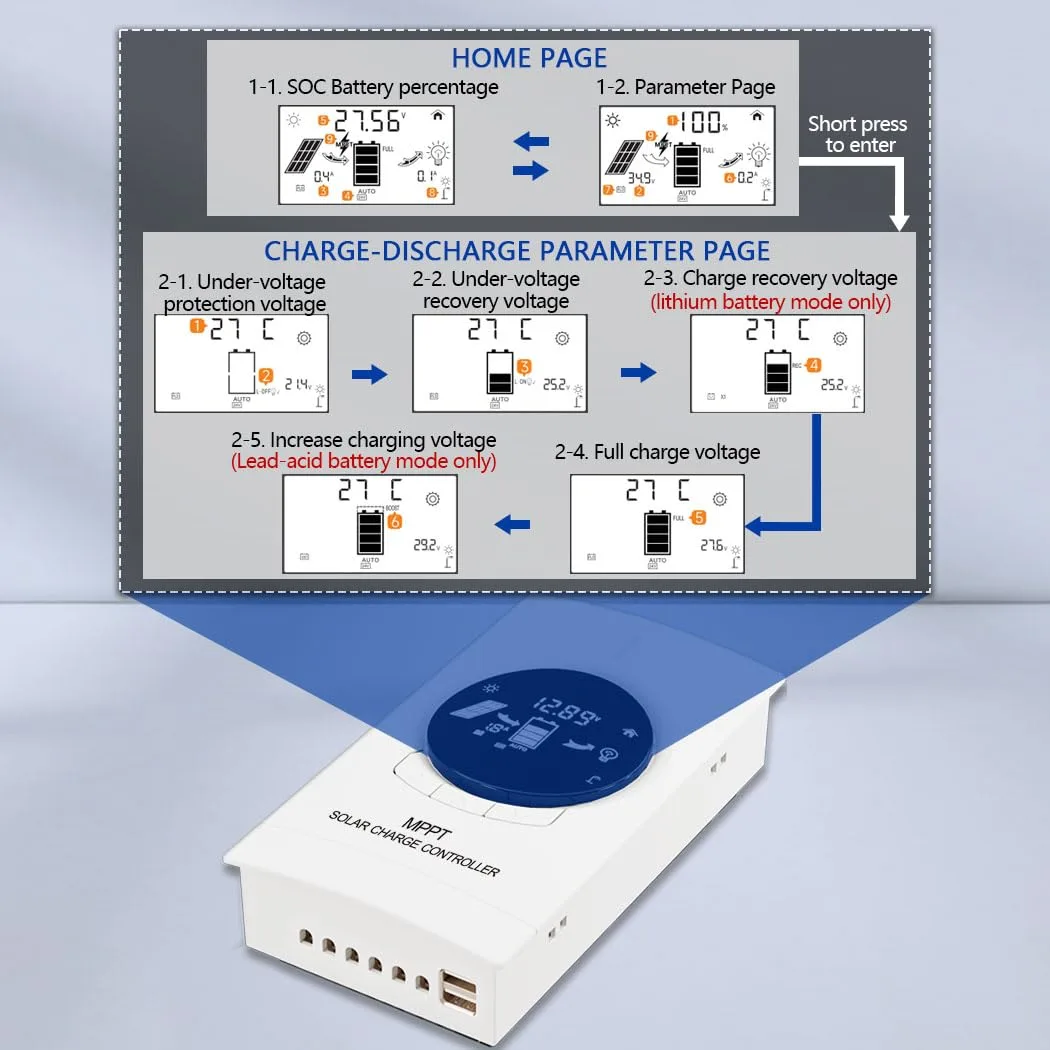

• Backlit screen displays system status and charge/discharge logs.
• Manual parameter settings for flexible battery optimization.
• Complete system protection against under-voltage, over-charge, overload, short-circuit, and reverse connection.
• Supports 240W-360W solar panels.
• Max input <80V (lowest temperature), <75V (25°C).

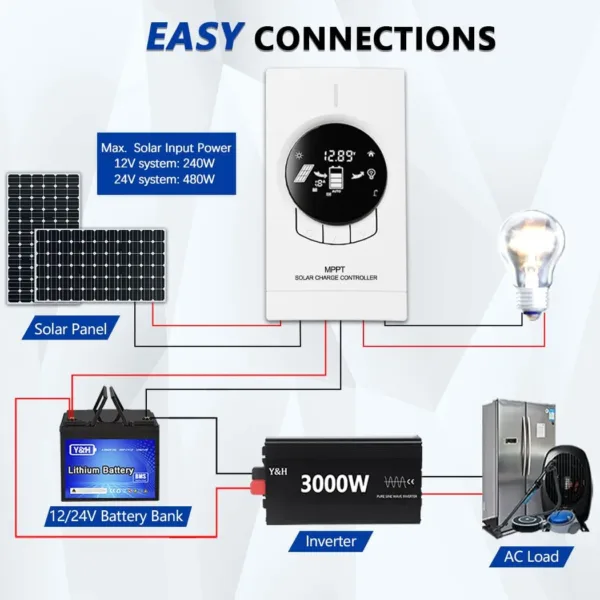

• Max input 240W (12V battery), 480W (24V battery).
