Description
Key Specifications — Legion 9 18IAX10 (Model 83EY0002AX)
| Component | Details |
|---|---|
| Processor (CPU) | Intel Core Ultra 9 275HX — 24 cores (8 Performance + 16 Efficiency), up to ~5.4 GHz turbo, 36 MB L3 cache |
| Integrated AI / NPU | Built-in Intel AI Boost, up to ~13 TOPS |
| Graphics (GPU Options) | • NVIDIA RTX 5080 Laptop (16 GB GDDR7) • NVIDIA RTX 5090 Laptop (24 GB GDDR7) Both with ~175 W TGP in many configurations |
| Display | 18″, 16:10 aspect ratio • WQUXGA (3840×2400) IPS, 240 Hz refresh • FHD (1920×1200) mode up to 440 Hz (with HSR enabled) • 500-520 nits brightness, 100% DCI-P3, Dolby Vision, DisplayHDR 400, NVIDIA G-SYNC / Advanced Optimus support |
| Memory (RAM) | 4 SO-DIMM slots, DDR5 Supports up to ~192 GB (with 4 × 48 GB modules) Campable memory speeds up to DDR5-5200 or DDR5-4000 depending on configuration |
| Storage | 4 × M.2 SSD slots: • 1 × PCIe 5.0 x4 (up to 2 TB) • 3 × PCIe 4.0 x4 (up to 2 TB each) User-expandable configuration possible |
| Battery | 99.9 Wh |
| Charging / Power Adapter | 400 W Slim Tip AC adapter (supports high wattage demands) |
| Ports & I/O | • 2 × Thunderbolt 5 (USB-C, DisplayPort 2.1, PD 95-100 W) • 1 × USB-C (USB 10 Gbps) • 3 × USB-A (10 Gbps) • HDMI 2.1 (up to 8K @ 60 Hz) • RJ-45 2.5 Gbps Ethernet • SD card reader • 3.5 mm headphone/microphone combo jack • Power connector |
| Audio / Camera | • 6-speaker audio system (4 × woofers, 2 × tweeters) with Smart Amp & Nahimic audio tuning • Webcam: 5 MP + IR, with E-shutter, supports Windows Hello |
| Keyboard & Input | • Six-row keyboard with multimedia Fn keys • Per-key RGB backlit keys • Glass multi-touch touchpad (~95 × 150 mm) |
| Cooling / Thermal Design | Advanced “Legion ColdFront: Vapor” cooling — vapor chamber, multiple heat pipes, quad turbo fans. Thermal design intended to manage sustained high loads. |

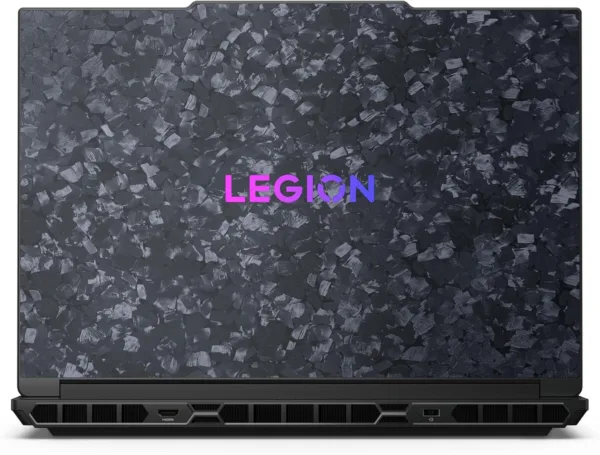

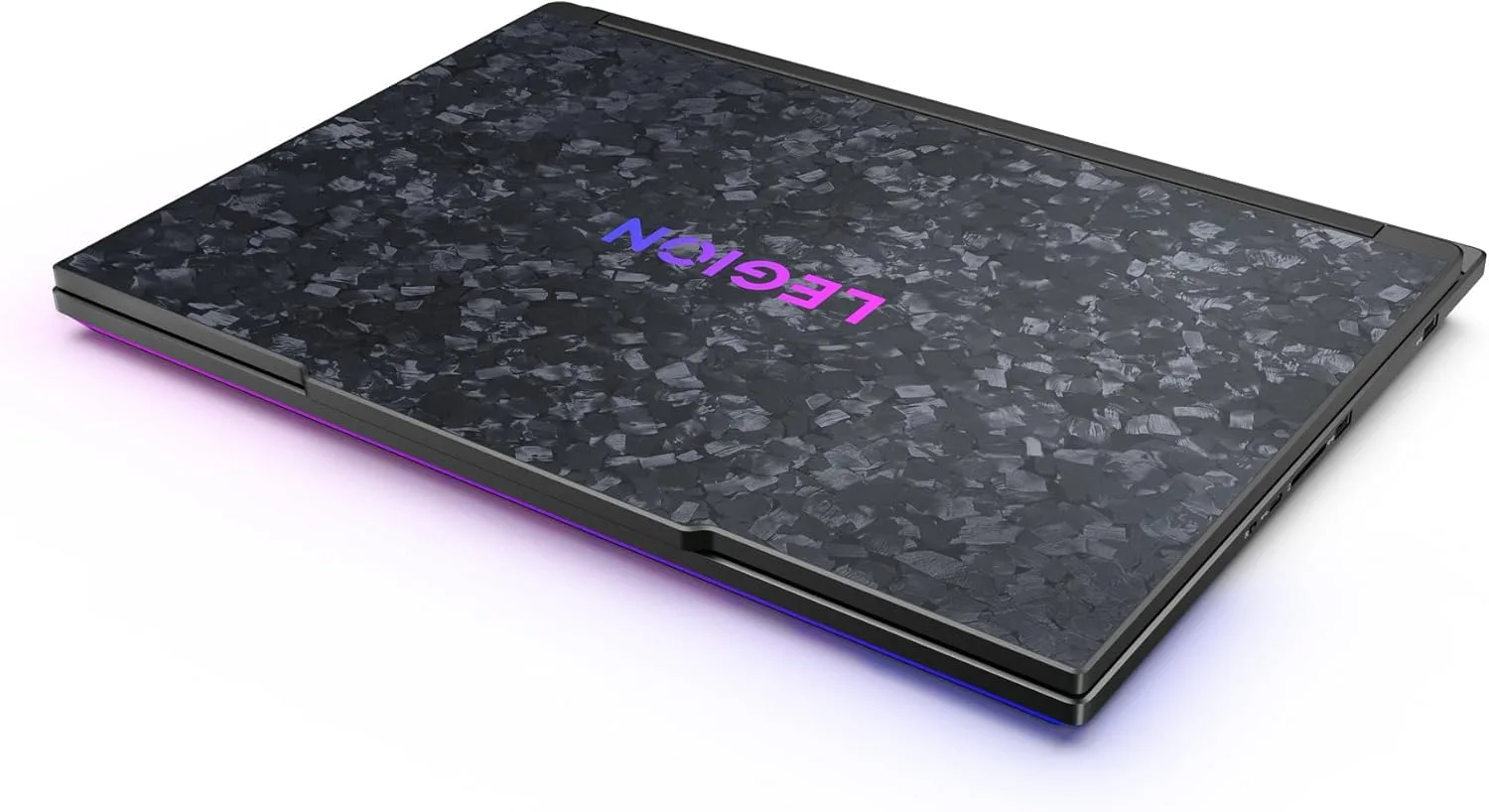

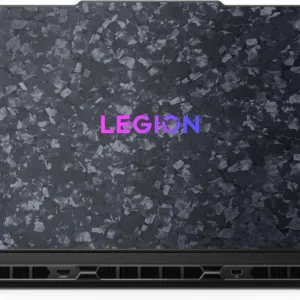

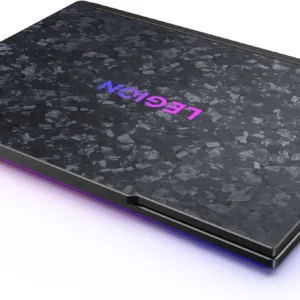

| Build / Materials | Eclipse Black color scheme; top cover uses forged carbon + soft paint finish; aluminum + composite chassis. Dimensions ~403 × 296.9 × 23.9–27.95 mm; Weight ~3.5 kg (2D display versions) |
| Connectivity (Wireless) | Intel / Killer Wi-Fi 7 (802.11be) 2×2 + Bluetooth 5.4 Ethernet: Killer E3100G 2.5 Gbps |
| Security & Extras | TPM 2.0, E-shutter for camera, BIOS security features, RGB lighting on cover / power button / U-strip |
| Operating System Options | Windows 11 Home / Pro / Single Language or no OS in some configurations |
| Warranty / Service | Standard 1-year courier or carry-in service; optional extended warranties available |
